소개 : This unit machine is special design for packaging pellets tea into small pillow bag with tiny weight .With function of tea pellets feeding,weighing, Automatic bag forming sealing and output .The main machine has function of bag counting and date coding .

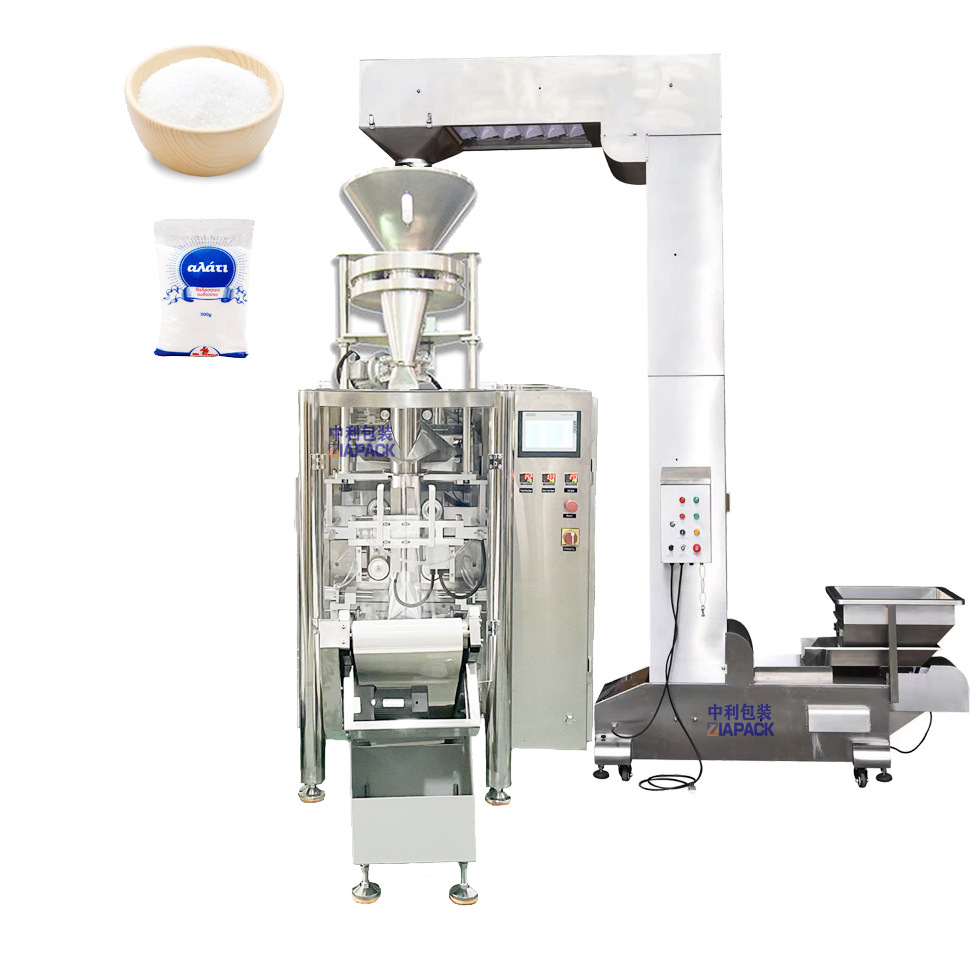

ZL320 Vertical bag forming filling sealing packaging machine
The whole machine frame made by Stainless Steel 304, All Material contact part made by SUS304 .This machine equipped with bag-making, cutting, code printing , bag counting ,bag sealing and bag dropping .According client requirement can add bag pressing ,make gusseted bag ,making flat bottom bag etc.Adopt SIEMENS PLC and Touch Screen,Panasonic servo motor, Japanese Photo Sensor , SMC electromagnetic valve . The machine performance is stable .It is a best choice for improve the automation of modern factory .
기술 파라미터 :
Weighing Range:10-500gram
Packaging Speed:30-60bags/min
Bag size: (80-220)*(60-150)mm(L*W)
Film roller width :320mm
공기 요구량: 0.6Mpa 0.65m³/min
outer diameter: 300mm
내경: 75mm
inner weight: 300kg
Power source: 3.5kW 380V±10% 50Hz
주요 특징 및 특징

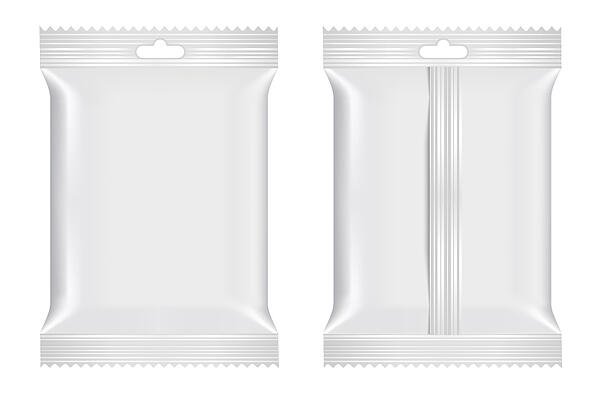

다양한 파우치 : 베개 백, 거싯 백, 변경 장치로 평평한 바닥 백을 만들 수 있습니다.
고속: 20-60개 이상의 백/분
작동하기 쉬움: PLC 컨트롤러 및 컬러 터치 스크린, 터치 스크린의 오류 표시.
조정하기 쉽습니다 : 다른 파우치를 교체하는 데 약 10 분.
주파수 제어 : 범위 내에서 주파수 변환으로 속도를 조정할 수 있습니다.
높은 자동화 : 계량 및 포장 공정에서 무인, 고장시 자동으로 기계 경보.
안전과 위생
필름이 없으면 기계가 알람을 울립니다.
기계 경보 및 부적절한 기압이 발생하면 정지하십시오.
안전 스위치가 장착 된 안전 장치, 기계 경고 장치 및 안전 장치가 열렸을 때 정지합니다.
위생적인 구조, 제품 접촉 부분은 sus304 스테인리스 스틸을 채택했습니다.
