자동 믹스너트 계량 충진 포장기

Automatic doy bag packing solution for 25-500gram nuts

Machine introduction:

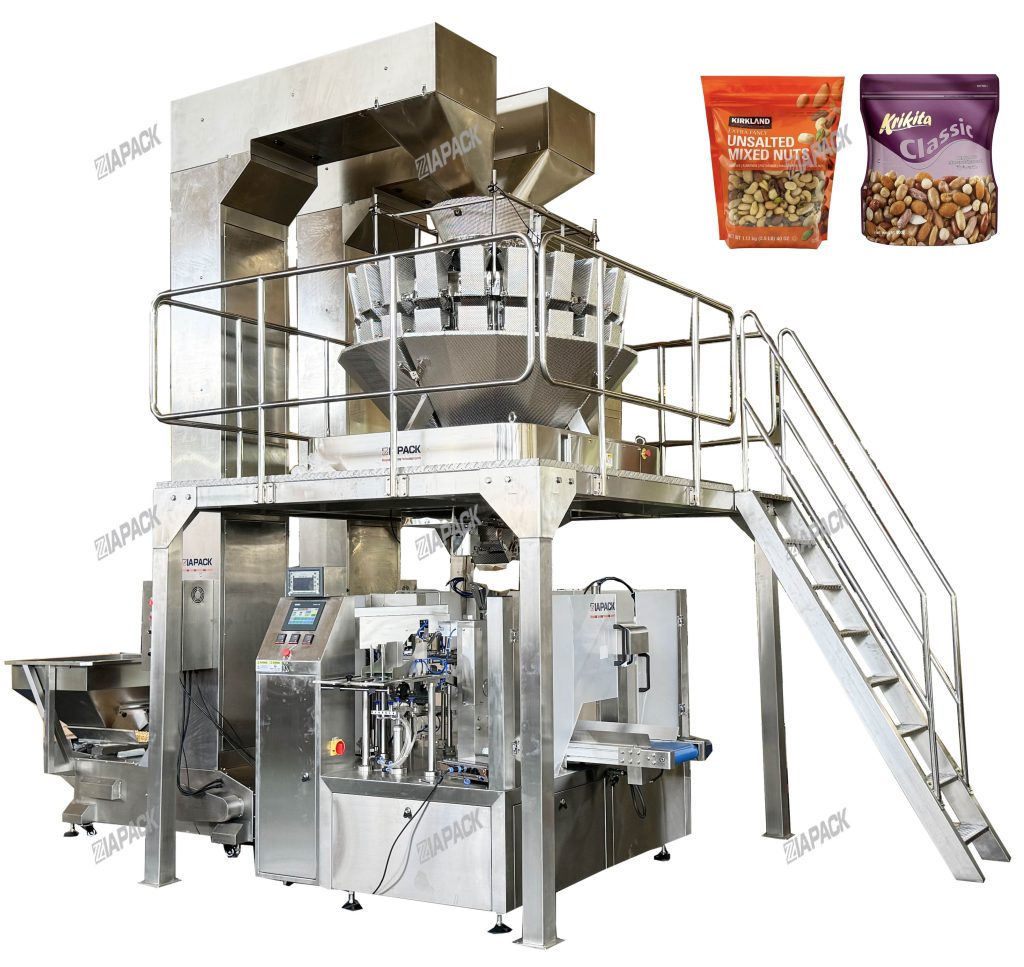

This unit machine including one set ZL20-1.6L multi heads weighing machine for weighing two different product, one set ZL8-230 rotary bag taking opening filling sealing machine, one set DT5 bucket elevator and one set safety platform and ladder. The main machine are control by siemens PLC and operate by touch screen .Adopt famous Electrical accessories. High automation and easy to operate. Widely use by the different industry like Daily chemical, food, chemical, and etc.

Machine details:

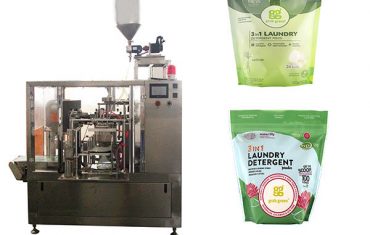

1, Model of ZL8-230 Rotary packing machine（doy packer with zipper)

Function and characteristics

1, 작동하기 쉽고 Siemens의 고급 PLC를 채택하고 터치 스크린 및 전기 제어 시스템과 짝을 이루며 인간-기계 인터페이스가 친숙합니다.

2, 주파수 변환은 속도를 조정합니다. 이 기계는 주파수 변환 장비를 사용하며 생산의 현실 요구에 따라 범위 내에서 조정할 수 있습니다.

3, 자동 검사: 주머니 또는 주머니 열림 오류 없음, 채우기 없음, 밀봉 없음. 가방은 다시 사용할 수 있으며 포장재와 원료 낭비를 피하십시오.

4、안전 장치: 이상 기압에서 기계 정지, 히터 단선 경보。

5, 가방의 너비는 전기 모터로 조정할 수 있습니다. 제어 버튼을 눌러 클립의 너비를 조정하고 쉽게 작동하며 시간을 절약할 수 있습니다.

6, 유리 안전 도어와 일치 할 수 있습니다. 동시에 먼지를 방지할 수 있습니다.

7, 플라스틱 베어링을 사용하여 기름을 바르지 않아도되고 오염이 적습니다.

8, 오일 진공 펌프를 사용하지 말고 생산 환경을 오염시키지 마십시오.

9、The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification

10、Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food

11、With different feeders changed to pack solid, liquid, thick liquid, powder and so on

12、The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on

Preformed bag made by film and paper.

명세서

ZL20-2.5L multiheads combination weighing machine

적용 범위:

It is suitable for high-speed weighing of a single material, formula mixing of multiple materials: the longest material is 60mm, and the single material is less than 60g, such as instant oatmeal and mixed nuts.

풍모:

The High-speed mode can be used for a single material;

The Weight Of the mixture can be compensated by the operation of the last material;

Using High-precision,high-standard special sensors;

Intelligent Fault Alarm prompt, maintenance is more convenient;

High-speed synchronous discharge function, effectively prevent material blockage;

The Highly integrated modular design adopts CAN bus technology;

Modbus industry standard communication protocol, realizes the combination of the combination scale and the packaging machine interface;

Other functions and features of the same generation model;

For Viscous Materials, anti-stick measures such as 60° chassis and Teflon coating can be used.

Mechanical Characteristics And product characteristics:

Separate Upper Hoppers are used for a variety of mixed formula materials;

Adopt independent main vibration machine to control the feeding thickness of different materials respectively;

The Integral Chassis and middle seat enhance the rigidity and strength of the machine, making the weighing more accurate;

The Chassis And chute adopt compatible design. When weighing a single material, it can be replaced with a double-port unloading tray, which can be equipped with a double-packing machine;

The Unified Design standard and the mold making process make the interchangeability of each part stronger.

Thestable Aluminum shell structure makes the hopper run more stably and the readings are more accurate. The integral chassis and the middle seat enhance the strength of the machine, making the hopper's stabilization time shorter;

명세서:
