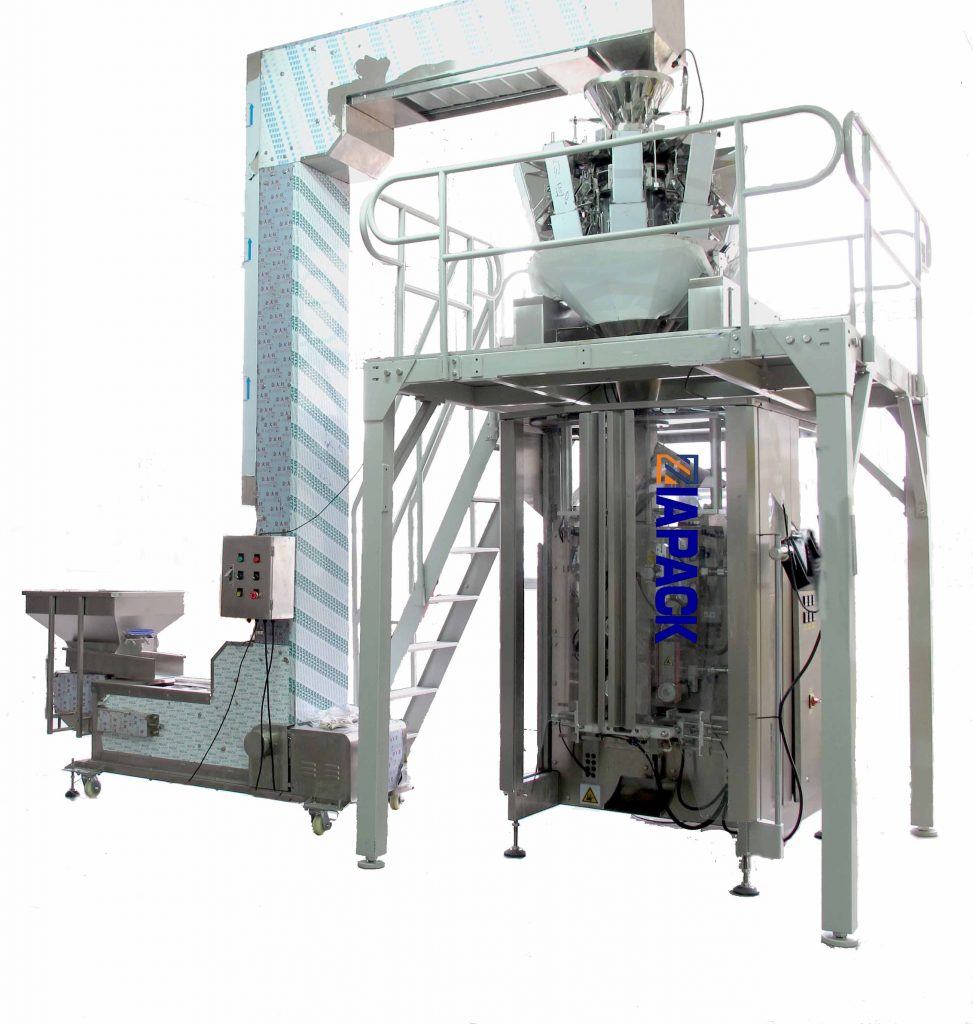

This machine can automatic realize functions of bag- making, filling, sealing, printing, cutting, etc. The finished bag with square bottom and vertical side .Can be stand on the table with pretty shape .This packaging machine adopts import servo motor for film feed and the man-machine interface uses advanced touch screen. Operation simpler and more convenient .All of the components adopts international famous brand, PLC is SIEMENS, servo motor is PANASONIC, touch screen is SIEMENS, cylinder and air valve is SMC. parts which contact with material 、control cabinet 、main frame are made of stain less steel304
기술 파라미터 :
Packing speed(MAX): 20-30 bags/min(depend on the weight from 250 gram-1000 gram)
Bag type: Square bottom bag (gusseted bag with square bottom )
Bag size: Front width: 80~190 mm; Side width: 25~60 mm Length: 100~380 mm
압축 공기 소비량: 0.6MPa 350L/min
Electric requirement: 380V/5.5 kW 50 Hz
특징 :
Film transport system and horizontal Jaw motion both drive by Panasonic motor
브라켓을 빼기만 하면 튜브와 칼라를 안전하게 신속하게 교체할 수 있습니다.
옵토 일렉트로닉스는 필름 소풍을 보정하기 위해 칼라의 필름 위치를 감지합니다.
가방 길이를 제어하기 위해 색상 코드를 유도하는 전기 포토 센서
독특한 공기압 필름 - 필름 드로잉 휨을 피하기위한 잠금 구조
독립적 인 온도 조절
PE/BOPP, CPP/BOPP, CPP/PE PE/NYLON,
알루미늄 호일 기반은 기계에서 실행할 수 있습니다.
포장 기계는 해당 장비를 변경하여 폴리에틸렌 필름 밀봉에도 사용할 수 있습니다.
