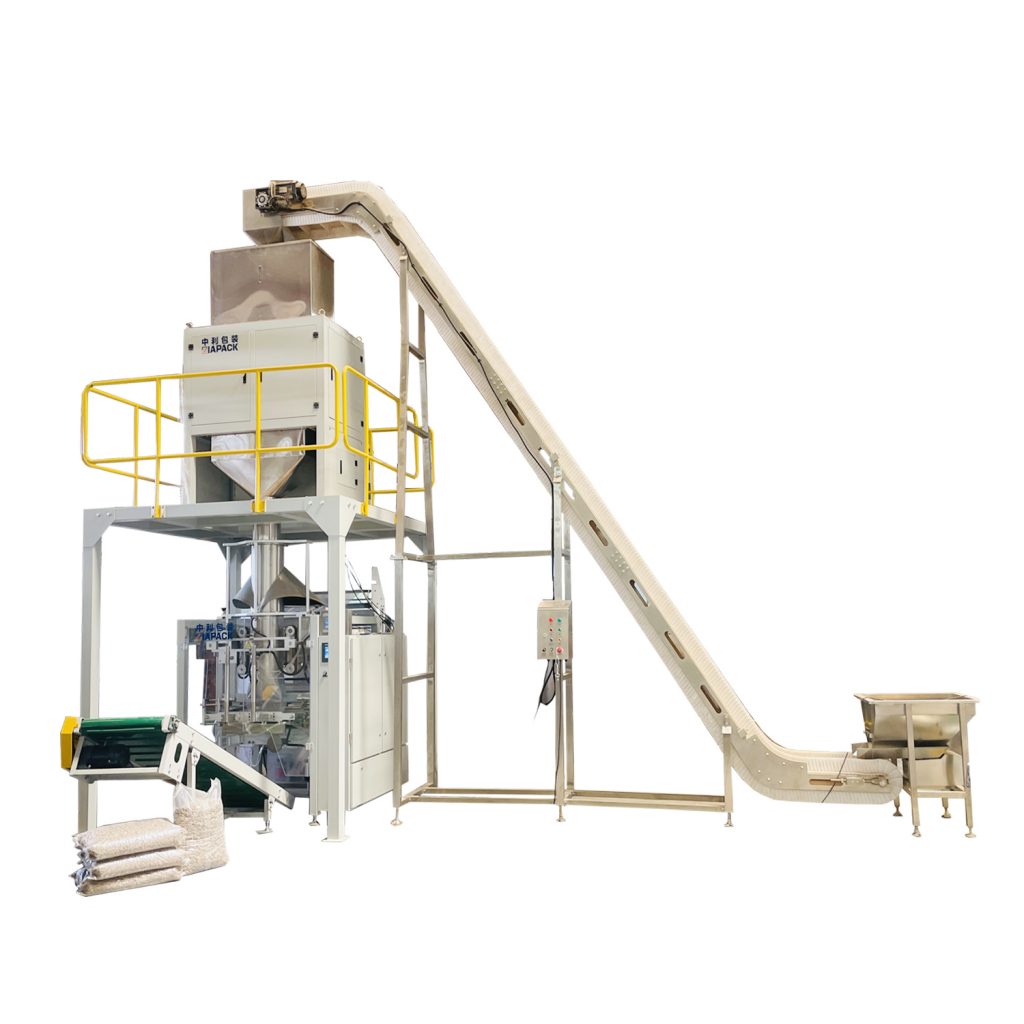

Automatic15-20 kg wooden pellets bag forming filling packaging machine
소개 :
This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .
기술 파라미터 :
Weighing Range: 1kg-5kg
Packaging Speed:12-30 bags/min
Bag size: (150-420)*(120-350)mm(L*W)
Max film width:720mm
압축 공기 요구 사항: 0.6Mpa 0.65m³/min
Reel outer diameter: 450mm
코어 내경: 75mm
Machine weight: 950kg
Power source: 6.5kW 380V±10% 50Hz
주요 특징 및 특성:
- 다양한 파우치: 필로우 및 거셋 파우치.
- 고속: 20-50 부대/분
- 작동하기 쉬움: PLC 컨트롤러 및 컬러 터치 스크린, 터치 스크린의 오류 표시.
- 조정하기 쉽습니다 : 다른 파우치를 교체하는 데 약 10 분.
- 주파수 제어 : 범위 내에서 주파수 변환으로 속도를 조정할 수 있습니다.
- 높은 자동화 : 계량 및 포장 공정에서 무인, 고장시 자동으로 기계 경보.
- 안전 및 위생:
- 필름이 없으면 기계가 알람을 울립니다.
- 기계 경보 및 부적절한 기압이 발생하면 정지하십시오.
- 안전 스위치가 장착 된 안전 장치, 기계 경고 장치 및 안전 장치가 열렸을 때 정지합니다.
- Hygienic construction, the product contact parts are adopted sus316stainless steel.

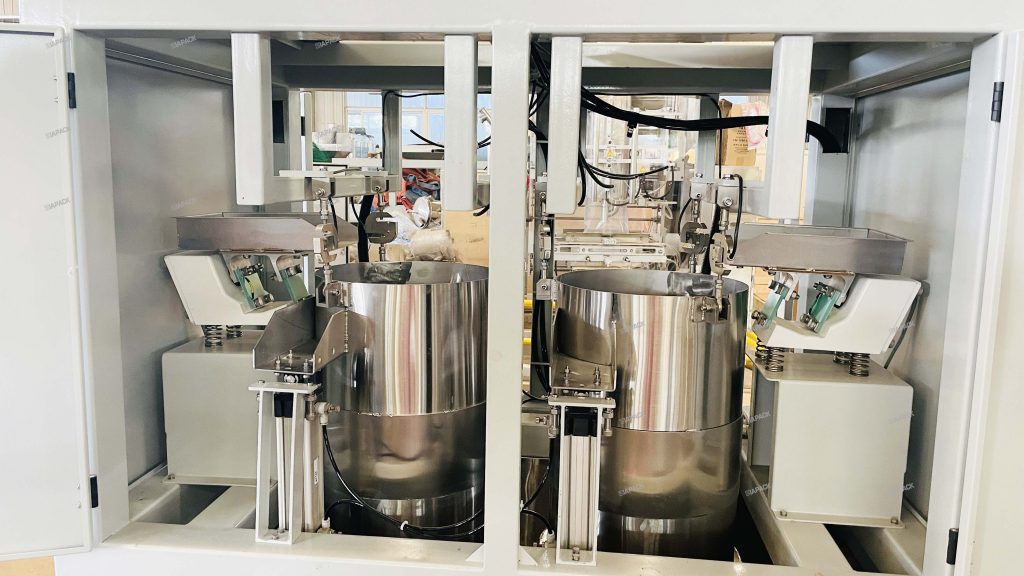

- ZLC2-15k double bucket weighing machine
소개 :
This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food
풍모:
- 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
- SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
- Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
- Amplitude can be automatically adjusted for easy operation.
- Each hopper can be used as single weigher.
- 6. With cylinder controlfor door open-close control , which is faster and more stable.
- 7. Modular control system for easy maintenance and cost-saving.
Parameter:
Weighing range :10-15kg
Accuracy :±0.5-0.8%
Min scale :0.1gram
Max speed :20-40bag/min
HIM:7” touch screen
Power supply :AC220±10% 50HZ /60HZ 1KW
